A loose strap at mile 40 usually starts with a bad setup at minute one. If you haul steel, lumber, machinery, pipe, or palletized freight, knowing exactly how trailer winches work matters because the winch is what turns a strap from basic webbing into real cargo securement force.

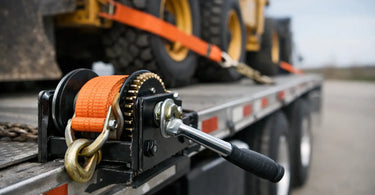

On a flatbed or drop deck, a trailer winch is a mechanical tensioning device mounted along the trailer side rail. It grips the end of a winch strap and uses a rotating mandrel, driven by a winch bar, to wind the strap and pull slack out of the system. That sounds simple, and it is. But the details matter - especially when you are trying to keep loads secure, protect equipment, and avoid problems at inspection time.
How trailer winches work in real hauling conditions
At the most basic level, the winch creates leverage. The strap runs over or around the freight, then feeds into the slot in the winch mandrel. When the driver turns the mandrel with a winch bar, the mandrel wraps the strap and shortens the working length. As the strap tightens, tension increases across the load and helps keep cargo from shifting forward, backward, or sideways.
The winch itself does not secure the load on its own. It works as one part of a full securement system that includes the trailer rail, the strap, edge protection where needed, anchor points, and the freight itself. If one part is undersized, damaged, or used incorrectly, the whole system is compromised.
That is why experienced operators do not just ask whether a winch turns. They look at fit, wear, strap condition, rail compatibility, and whether the setup matches the load.
The main parts of a trailer winch
Most trailer winches used on flatbeds share the same core design. The frame mounts to or slides along the trailer side rail, depending on whether it is a fixed winch or a sliding winch. Inside that frame is the mandrel, sometimes called the spool, which is the rotating shaft the strap winds onto.
There is also a pawl or locking mechanism that holds the mandrel in position once tension is applied. Without that locking action, the winch could rotate backward and release strap tension. The access point for the winch bar allows the operator to apply torque and tighten the system with controlled force.
In daily use, the components that take the most punishment are usually the mandrel slot, the gear or locking area, and the mounting points. Dirt, corrosion, bent hardware, and repeated overloading all shorten service life.
Fixed winches vs. sliding winches
A fixed winch stays in one mounting position on the trailer. That works well when securement points are predictable and the load profile stays fairly consistent.
A sliding winch moves along a track so the securement point can be adjusted to fit different cargo lengths and tie-down positions. For fleets hauling mixed freight, that flexibility is often the better fit. The trade-off is that sliding hardware needs to stay clean and functional, or adjustment gets slower and more frustrating than it should be.
What happens when you tighten a winch strap
When the strap is fed through the mandrel slot and the mandrel turns, the webbing begins wrapping around the drum. Each rotation reduces available slack. That shortening action pulls the strap tighter across the cargo.
The winch bar gives the operator mechanical advantage. Instead of trying to pull the strap tight by hand, the driver uses leverage to generate far more tension than hand force alone could provide. That is the entire point of the system.
As tension builds, the strap compresses the load against the deck or stabilizes it against movement. How much restraint you actually get depends on several factors: strap working load limit, strap angle, friction between cargo and deck, edge protection, and how the load is positioned. A strong winch cannot make up for a poor securement plan.
This is where some confusion comes in. A trailer winch does not create infinite force, and tighter is not always better. Over-tensioning can damage webbing, crush cargo, deform packaging, or create unnecessary stress on hardware. The goal is proper tension for the freight, not maximum force for its own sake.
Why leverage matters
Winches are built around leverage and control. A standard winch bar extends the operator's reach and multiplies input force at the mandrel. With the right bar and correct technique, the operator can tension the strap efficiently without wasting motion.
But leverage cuts both ways. If the bar slips, the pawl is not fully engaged, or the operator is out of position, stored energy can come back hard. That is why safe body position and controlled movement matter every time the winch is used.
For commercial operations, consistency is just as important as raw holding power. A winch that engages cleanly and tensions smoothly helps reduce loading time, rework, and equipment abuse across the fleet.
How the locking mechanism keeps tension in place
Once the strap is tightened, the locking mechanism keeps the mandrel from unwinding. On most trailer winches, the pawl drops into position against the gear or locking surface as the mandrel turns. That mechanical hold is what keeps the strap under tension during transport.
If the locking components are worn, packed with debris, bent, or partially engaged, the system may not hold as intended. That can lead to gradual loosening in transit or a dangerous release during adjustment.
This is one reason inspections before loading matter. A winch with rounded engagement points or obvious damage may still appear usable, but under road vibration and load shift, that wear can become a real problem fast.
Common factors that affect winch performance
Not every issue with strap tension starts at the winch, but the winch often shows the problem first. Corrosion can make rotation rough. A bent mandrel can cause uneven winding. A strap that is twisted before entering the winch will not spool correctly and may lose tension or wear prematurely.
Load shape matters too. Flat, uniform freight is usually easier to secure consistently than irregular equipment or mixed-height cargo. If the strap crosses sharp corners without protection, the webbing can cut or abrade even when the winch itself is in good condition.
Weather also changes performance. Wet straps can settle differently than dry ones. Ice, mud, and road grime affect both the webbing and moving parts. In winter operations especially, a winch that was acceptable in the yard can become stiff or unreliable after a day on the road.
Using trailer winches safely and correctly
Good winch use starts before the bar ever goes in. The strap should be routed cleanly, without twists, and positioned so the tension path makes sense for the cargo. The strap needs to sit correctly in the mandrel slot and begin winding evenly instead of bunching to one side.
As tension is applied, the operator should keep clear body positioning, maintain control of the winch bar, and confirm the locking mechanism is fully engaged. After a short run, recheck the securement. Loads settle. Straps relax. A quick retightening early in transit often prevents bigger problems later.
It also pays to match the hardware to the operation. Fleets hauling dense, repetitive freight may want a different mix of fixed or sliding winches than carriers handling varied customer loads every day. There is no single best setup for every trailer.
When a trailer winch should be replaced
A winch should not stay in service just because it still turns. Replace it when the frame is bent, the mandrel is damaged, the locking mechanism does not engage positively, or corrosion has weakened key load-bearing areas. If the strap slot is sharp or distorted, it can start cutting webbing and create a failure point somewhere else in the system.
For fleet managers, replacement timing is really an uptime question. Running worn winches saves nothing if they slow loading, fail inspection, damage straps, or create roadside issues. Keeping dependable, commercial-grade hardware on trailers is usually cheaper than dealing with preventable downtime.
Why understanding the system matters
Knowing how trailer winches work helps buyers spec better trailers, stock the right replacement parts, and avoid wasting money on gear that does not fit the operation. It also helps drivers and yard teams spot problems before they turn into damaged freight or compliance headaches.
A trailer winch is not complicated, but it is load-critical equipment. When it is built right, matched to the job, and maintained properly, it delivers the kind of repeatable strap tension that flatbed work depends on every day. That is the standard serious hauling operations should expect from their gear.
If your trailers are seeing daily strap cycles, weather exposure, and heavy commercial use, treat the winch like what it is - a working securement component that deserves the same attention as the straps, chains, and binders riding with it.
