A load can look tight at the dock and still fail an inspection 50 miles later. That is why DOT tie down requirements matter in the real world - not just on paper. If you run flatbeds, step decks, or mixed freight, the right number of tie-downs, the right working load limit, and the right securement method all have to line up.
For fleets and owner-operators, cargo securement is a compliance issue, a liability issue, and an uptime issue. Miss the mark, and you are looking at violations, rework, delayed deliveries, damaged freight, or worse. The good news is that most securement mistakes come from a few repeat problems: using too few tie-downs, guessing at WLL, or treating every load like general freight when the DOT sees it differently.
What DOT tie down requirements actually cover
DOT tie down requirements are part of the Federal Motor Carrier Safety Administration cargo securement rules. At the basic level, the rules govern how cargo is immobilized or secured so it cannot shift, tip, fall, roll, or blow off the vehicle.
That includes more than throwing straps over a load. The regulations look at the number of tie-downs used, the aggregate working load limit of those tie-downs, how the cargo is positioned, whether blocking and bracing are needed, and whether the commodity has its own securement standard. A stack of lumber, a piece of machinery, and a steel coil are not judged exactly the same way.
This is where operators get tripped up. The securement method that worked for one load yesterday may not satisfy the rule for a different commodity today. Compliance depends on cargo type, weight, length, shape, and whether the item is prone to rolling or shifting.
The baseline rule for most cargo
For general freight, the DOT starts with a simple expectation: cargo must be firmly secured by structures of adequate strength, dunnage when needed, and tie-downs that can handle the load.
The two most common checks are the minimum number of tie-downs and the total working load limit. Working load limit, or WLL, is the maximum load a securement device is rated to handle under normal service. It is not the same as breaking strength, and treating those as interchangeable is a fast way to build a non-compliant setup.
When tie-downs are used, the aggregate WLL generally must be at least 50 percent of the weight of the article or group of articles being secured. So if a load weighs 20,000 pounds, the combined WLL of the tie-downs securing it generally needs to be at least 10,000 pounds. That is the floor, not a best practice target.
The number of tie-downs is often based on article length. A typical rule for an article 5 feet or less in length and 1,100 pounds or less is at least one tie-down. If it is 5 feet or less but over 1,100 pounds, or longer than 5 feet up to 10 feet, at least two tie-downs are generally required. For articles longer than 10 feet, operators typically need two tie-downs plus one additional tie-down for every additional 10 feet of length or fraction of 10 feet.
Those are baseline rules, and they matter. But they do not override commodity-specific rules where those apply.
DOT tie down requirements for heavy equipment
Heavy equipment has its own securement standard, and this is one area where fleets cannot afford shortcuts. If you are hauling machinery or vehicles that meet the regulatory definition of heavy equipment, the rule is more specific than general cargo securement.
In broad terms, equipment over 10,000 pounds usually must be secured with at least four tie-downs, attached as close as practicable to the front and rear of the vehicle, or mounted accessory points designed for securement. There are also requirements to secure accessories such as articulated arms, booms, buckets, or blades if they could shift in transit.
This is not the place to rely on one oversized strap and a good feeling. Inspectors want to see a securement plan that matches the equipment and restrains movement in forward, rearward, and lateral directions. Chains, binders, and approved attachment points are often the right answer here because of the weight involved and the need for resistance under hard braking or evasive maneuvers.
The trade-off is speed versus margin. Straps can be faster for some freight, but for heavy equipment, chain securement is often the more practical and compliant choice.
Why WLL mistakes happen so often
Most WLL errors come from mixing gear without doing the math. A driver may know each strap rating, but the setup still fails if the total securement capacity is not enough for the load or if a weak component brings the assembly down.
The WLL of a tiedown assembly is limited by its weakest component. That means strap, chain, end fitting, winch, ratchet, hook, and anchor point all matter. A high-capacity chain paired with an undersized binder or questionable anchor point does not give you a high-capacity securement system.
Condition matters too. DOT does not just care about the label when the gear is new. Cut webbing, damaged hooks, stretched chain links, bent hardware, and worn ratchets can put a securement device out of service. If the tag is missing on a strap and the WLL cannot be identified, you may not be able to count it as rated securement gear.
For fleet managers, this is where procurement and compliance meet. Buying commercial-grade securement gear with clear ratings and consistent specs makes inspections easier and replacement cycles more predictable.

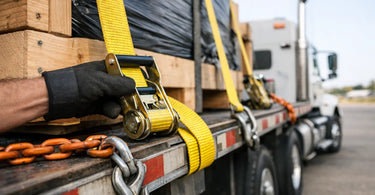

Common tie-down setup problems on flatbeds
Flatbed loads create their own challenges because shape and contact points vary so much. A clean legal setup for palletized freight will not translate directly to pipe, machinery, or irregular fabricated steel.
One common problem is relying on downward force alone when the load also needs direct restraint. Another is poor tie-down angle. A strap that is technically attached but laid too flat may not provide enough resistance where the load wants to move. Edge protection is another frequent miss. Sharp edges can damage webbing quickly, especially under vibration and weather.
Friction also gets overestimated. A dry deck, clean dunnage, and well-set straps help, but friction is not a substitute for enough tiedown capacity. If the load can shift under braking, securement has to stop that movement.
Then there is load grouping. Operators sometimes assume several pieces loaded together can be treated as one article. Sometimes that works, sometimes it does not. If pieces can move independently, DOT may view them as separate articles needing separate restraint.
Commodity-specific securement changes the answer
This is where experience matters. The general cargo rule is only the starting point. The FMCSA has specific rules for commodities such as logs, dressed lumber, metal coils, paper rolls, concrete pipe, intermodal containers, automobiles, and heavy vehicles or equipment.
A steel coil is a good example. It needs securement based on orientation, weight, and cradle or blocking method. A paper roll has different concerns tied to shape and direction of travel. Lumber and building products often require attention to stacking, banding, and how the load is grouped.
If your freight mix includes specialized commodities, it is worth building securement standards by lane or commodity type instead of relying on one generic checklist. That approach cuts down on field decisions and helps drivers load faster without guessing.
Inspection readiness starts before the truck moves
If you want fewer problems at roadside, the process has to start in the yard. The best operations do not leave securement to memory alone. They match gear type to cargo, verify WLL before loading, inspect straps and chains during staging, and make sure drivers have the right protection for edges and abrasion points.
Securement also needs rechecks. Drivers are expected to examine cargo securement within the first part of the trip and make adjustments when needed. Freight settles. Dunnage compresses. Weather changes tension. A load that was legal at departure can loosen up before the first fuel stop.
For larger fleets, standardizing gear helps. When trailers are stocked with consistent chain sizes, strap ratings, corner protectors, winches, and binders, drivers are less likely to improvise. That consistency also makes training easier and replacement ordering faster.
What buyers should look for in securement gear
Meeting DOT tie down requirements is not only about knowing the rule. It is about having gear that holds up under repeated use. Buyers should focus on visible WLL markings, durable webbing or chain construction, reliable hardware, and product specs that fit the loads they actually haul.
There is always a cost question, especially when ordering for multiple trailers. But cheap gear tends to get expensive through early replacement, inspection failures, and downtime. Fleets usually save more by buying equipment that stays in service longer and performs consistently across different drivers and routes.
That is where a supply partner matters. RoadGear serves fleets and owner-operators who need compliant, commercial-grade cargo control equipment without wasting time chasing mismatched inventory.
The safest rule of thumb is simple: if you are unsure whether a load meets the minimum securement standard, stop and build a better securement plan before the wheels turn. It is a lot cheaper to add one more tiedown in the yard than explain a preventable problem on the shoulder.
